AC-NES11

PRODUCT DESCRIPTION

Multi-purpose LED bar lighting designed for use as inter-canopy, supplemental, or primary grow lighting to boost light coverage. When optimally positioned, this kit will help maximize your plant’s growth and yields. Each light bar has heavy-duty construction and is IP65-rated to resist water and dust entry, enabling it to withstand humid climates. Its unibody housing and aluminum board host a row of full-spectrum Samsung LM301H EVO LEDs while also dissipating heat to extend the diodes’ lifespan. The kit includes a lighting controller, four LED grow light bars, and four steel bars that enable flexible mounting on any surface in grow tents. Includes mounting screws to be used as primary lighting in smaller grow setups. Also compatible with our humidity domes for use in seed germination and propagation applications. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

COMPLETE LIGHTING COVERAGE

Magnetically mounts on grow tent frames and canvases when using the included steel bars. Provide extended coverage to inter-canopy areas that your primary lights have trouble reaching. Each LED grow light bar is built with genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. You can also link additional grow light bars to extend your reach or add more support lighting.

SMARTER CONTROLS

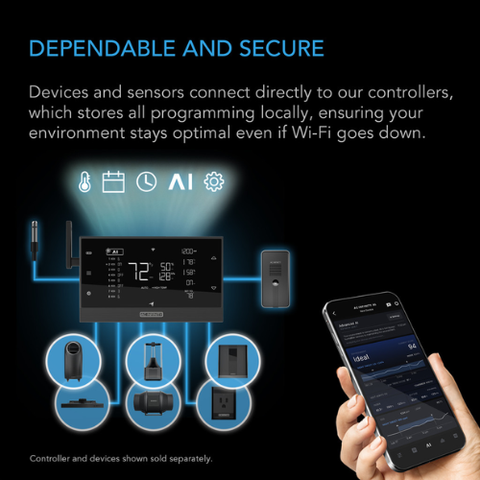

This kit includes an intuitive controller that features ten brightness intensity levels with OFF, ON, and SCHEDULE modes. Its built-in port can connect to UIS controllers to integrate with other grow equipment and access dynamic climate triggers, grow cycles, and schedules. Connect to the app to control your devices from anywhere, as well as unlock advance automations, alerts, climate charts, CSV data export, and more!

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	IONBEAM S11
Product Model	AC-NES11
UPC Code	819137023352

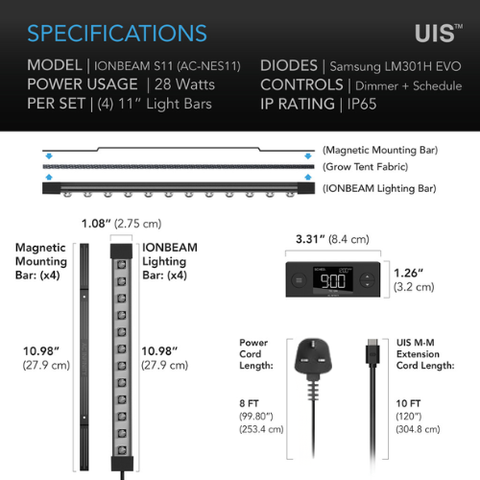

Product and Mounting Dimensions
Light Dimensions	10.98 x 1.08 in. (27.9 x 2.75 cm)
Controller Dimensions	3.31 x 1.26 in. (8.4 x 3.2 cm)
Power Cord Length	99.8 in. (253.4 cm)
Connector Cord Length	9.1 in. (23.2 cm)
Product Performance and Technical Specs
Diodes	Samsung LM301H EVO
LED Chip Count	12 per bar
Spectrum	3000K, 5000K
Wattage	30 W
Voltage	100-240V AC
Frequency	50/60 Hz
Controller	Dimming Schedule Controller
Power Connector Type	UK
Waterproof Rating	IP65
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Life Expectancy	50,000 Hours
Product Manual
Product Manual	PDF

Ionbeam S11, Full Spectrum Led Grow Clone Light Bars, Samsung LM301H EVO, 11-Inch
