AC-ALS20

Large high-airflow shutter fan designed to remove stale air and ventilate greenhouses, garages, and more.
Features a 10-level fan speed controller that utilizes PWM technology to generate precise airflow.
Innovative EC motor with PWM control maximizes airflow while reducing energy consumption and noise level.
IP44-rated frame features steel shutters and fan blades that block debris while resisting moisture and dust.
Fan Size: 20” | Dimensions: 23.0 x 23.0 x 11.2 in. | Airflow: 3425 CFM | Noise: 65 dBA | Bearings: Dual Ball

Product Description

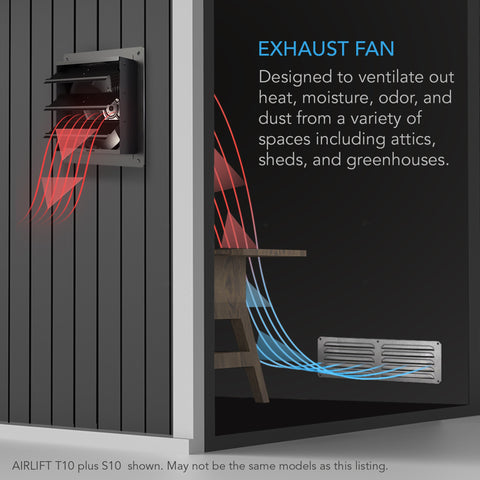

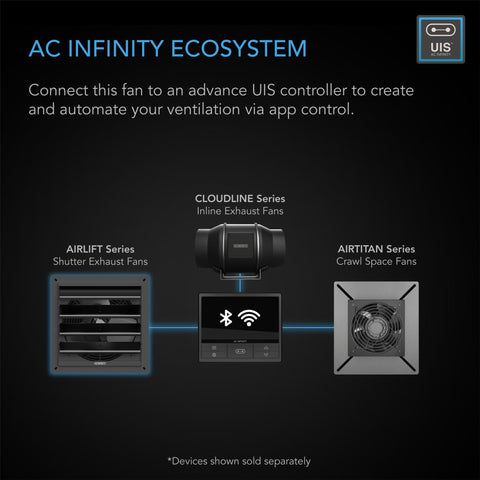

A shutter exhaust fan designed to exchange air in large spaces, improving ventilation in workspaces like warehouses, greenhouses, garages, and workshops. By installing this exhaust fan, you can refresh your workspace and regulate heat, moisture, and odor levels to improve comfort. It is run by a PWM-controlled EC motor that is energy-efficient while enabling precise fan speed control to generate your ideal ventilation level. This control is powered by a speed controller that enables up to 10 fan speed levels. Its heavy-duty build features aluminum fan blades, steel wire guards, and lightweight steel shutters. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

Precision Fan Speed Control

This shutter fan includes a speed controller that enables you to set its speed to optimize noise and airflow levels in various environments. The fan speed control is supported by its EC motor that is precisely controlled using PWM (Pulse Width Modulation), which enables it to run smoothly at extremely low RPM speeds without generating motor noise. Ten-speed options are available with a power switch and backup memory.

Heavy-Duty Performance

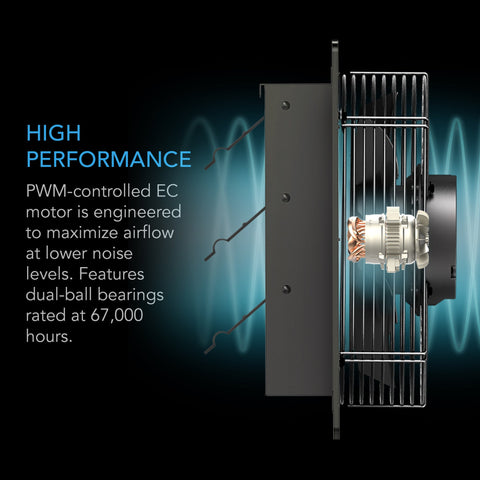

Features steel shutters that are weather and corrosion-resistant, automatically closing when not in use to prevent dust, debris, and moisture from entering your space. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRLIFT S20
Product Model	AC-ALS20
UPC Code	819137024229

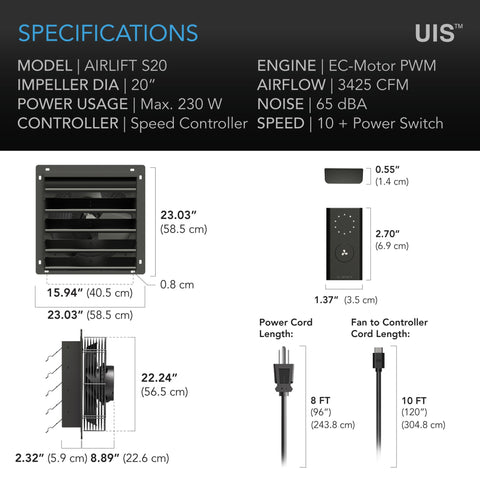

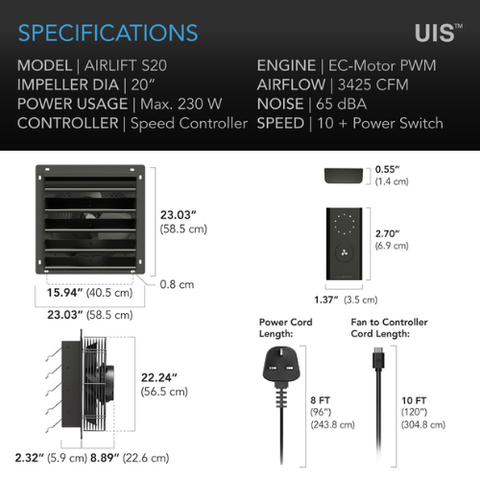

Product and Mounting Dimensions - Fan Unit
Total Dimensions	23.03 x 23.03 x 11.21 in (58.5 x 58.5 x 28.5 cm)
Frontside Enclosure Dimensions	20.62 x 20.62 in (52.4 x 52.4 cm)
Required Mounting Hole	22.24 x 22.24 in (56.5 x 56.5 cm)
Hole to Hole Distance	15.94 x 15.94 in (40.5 x 40.5 cm)
Screw Hole Size	Ã 0.31 in (Ã 0.8 cm)
Cord Length to Controller	120 in (10 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Product Performance and Technical Specs
Total Airflow	3425 CFM
Total Noise	65 dBA
Static Pressure	107 Pa
Operating Voltage	100-240V AC
Power	230W
Current	3.2 A
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Fan Bearings	Dual Ball
Life Expectancy	67,000 Hours
CE Certification (Whole Product)	PDF
Product Manual
Product Manual	PDF

AIrlift S20, Shutter Exhaust Ventilation Fan 20", Speed Controller
