A next-gen fan designed for precise circulation control for plant growth, finer shop work, or tailored comfort.

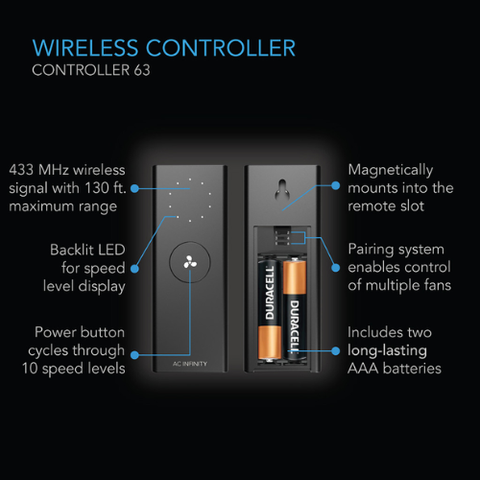

10-speed wireless remote; smart digital PWM controls from silent, gentle breezes to high-velocity airflow.
New innovative EC motor is quieter, more energy-efficient, and has twice the lifespan of AC floor/wall fans.
IP-44 rated, heavy-duty build performs well in harsher environments with high humidity and temperatures.
Floor standing or wall-mounted using included hardware with a 360-degree adjustable tilt to direct airflow.

PRODUCT DESCRIPTION

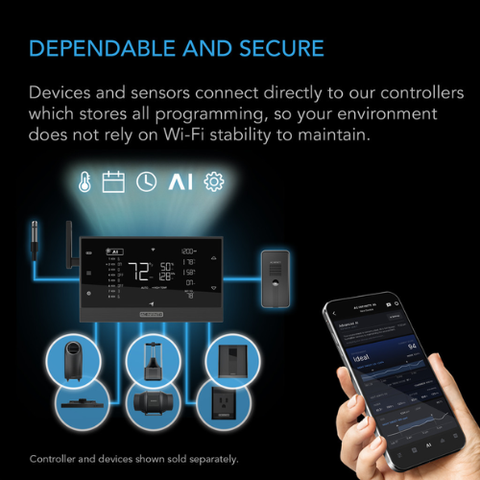

A floor wall fan designed to provide precise control of an environment’s air circulation in applications like plant growing, finer shop work, or tailored personal comfort. Utilizes a cutting-edge EC motor with PWM control to access a full range of fan speeds from silent, ultra-gentle breezes to high-velocity airflow. Includes a 10-speed wireless remote with batteries included. The unit can be manually adjusted with a 360-degree tilt to direct airflow and features a heavy-duty IP-44 rated construction for harsher environments. Includes hardware for both floor standing and wall mounting and can be powered through a standard outlet with its 12-foot power plug cord. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

NEXT-GEN EC MOTOR

Features a cutting-edge Electronically Commutated (EC) motor with dual-ball bearings, controlled digitally using precise electronic pulses. This PWM technology enables the fan to operate quieter and control the full range of its speed 0 to 100% without additional heat or noise. In comparison, traditional floor wall fans contain AC-motors that rely on voltage suppression for limited speed control. EC motors pay for themselves in the long run having twice the lifespan and being 40% more energy-efficient.

RATED FOR HARSH ENVIRONMENTS

Each industrial fan system features heavy-duty construction with a steel enclosure, rigid stand, and weight-balanced aluminum blades and impellers that reduce vibrations. All components are specially sealed to be IP-44 rated to be highly resistant to liquids and dust. Put together, these upgrades enable greater performance in harsher environments with high humidity and varying temperatures.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CLOUDLIFT S12
Product Model	AC-WFS12
UPC Code	819137022263

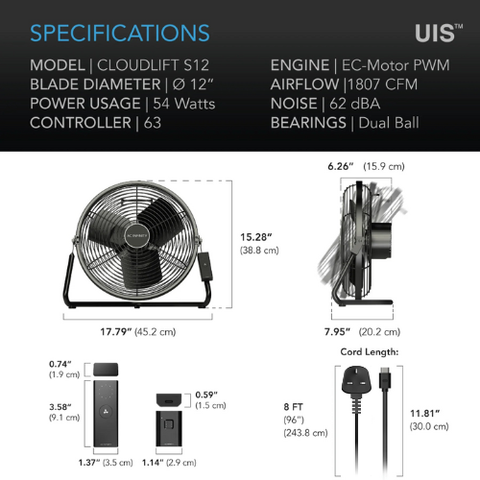

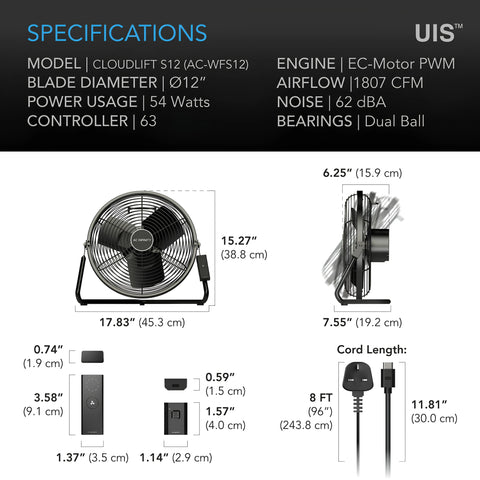

Product and Mounting Dimensions - Fan Unit
Total Dimensions	17.79 x 15.28 x 7.95 in. (45.2 x 38.8 x 20.2 cm)
Power Cord Length	96 in. (243.8 cm)
Cord Length to Controller	11.81 in. (30.0 cm)
Product and Mounting Dimensions - Controller
Controller Dimensions	3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
Receiver Dimensions	1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
Mounting Hole Size	Ø 0.25 in. (Ø 6.5 mm)
Product Performance and Technical Specs
Airflow	1807 CFM
Static Pressure	7.426 mm-H20
Noise	62 dBA
Operating Voltage	100 to 240V
Power	54 W
Current	0.75 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Product Manual
Product Manual	PDF

Cloudlift S12, Floor & Wall Fan with Wireless Controller, 12 inch
