AC-CCA9 - Manual Swivel - DOES NOT oscillate!

Designed with an EC-motor to provide precise air circulation for all stages of a plant’s growth.
Digital 10 speeds, from gentle breezes for seedlings to a powerful airflow for flowering.
IP-44 rated specifically for the grow environment to be resistant to high humidity and heat.
Connects with smart controllers (69 series) to access climate triggers, grow cycles, scheduling, and more.
Impeller: 9” | Airflow: Up to 450 CFM | Non-Oscillating Manual Swivel | Fits All Grow Tent Pole Sizes

PRODUCT DESCRIPTION

A next-gen clip fan designed from the ground up to provide precise air circulation for all stages of a plant’s growth. Utilizes a cutting-edge EC motor with PWM control to access a full range of fan speeds, from gentle breezes to a powerful airflow. The ten speed levels are shown with a circular LED display that dims after fan speed is set to leave your plant's light cycle undisturbed. Adjustable head tilt and swiveling arm provide flexible directional airflow options. Features a heavy-duty clamp that tightly grips onto grow tent poles of all sizes for a secure vertical hold. Each unit is IP-44 rated to be highly resistant against humidity and temperature. Can be powered through a standard outlet with its 8-foot power plug cord. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

SMART CIRCULATION CONTROL

Features a cutting-edge Electronically Commutated (EC) motor, controlled digitally using precise electronic pulses. This PWM technology enables the fan to access the full range of its speed 0 to 100%. Set the optimal circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings, to a powerful airflow for vegetative and flowering. Includes a corded adapter that can be used to connect to AC Infinity smart controllers (69 series) to access climate triggers, grow cycles, scheduling, and more. Controllers are sold separately.

RATED FOR GROW ENVIRONMENTS

This series was designed from the ground up for a grow space environment. All components are specially sealed to IP-44 standards to be highly resistant to liquids and dust. As a result, the system can maintain peak performance and a long lifespan even in harsher surroundings with high humidity and temperatures.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CLOUDRAY A9
Product Model	AC-CCA9
UPC Code	819137022454

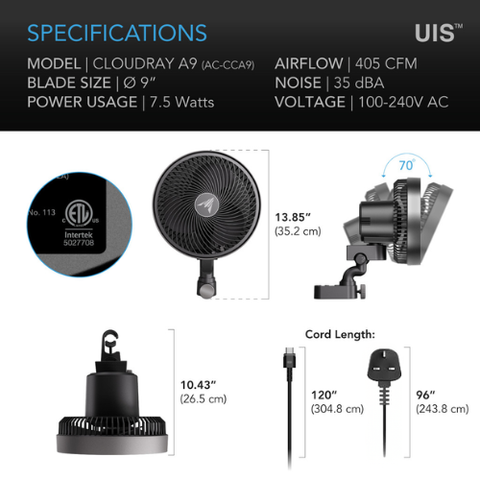

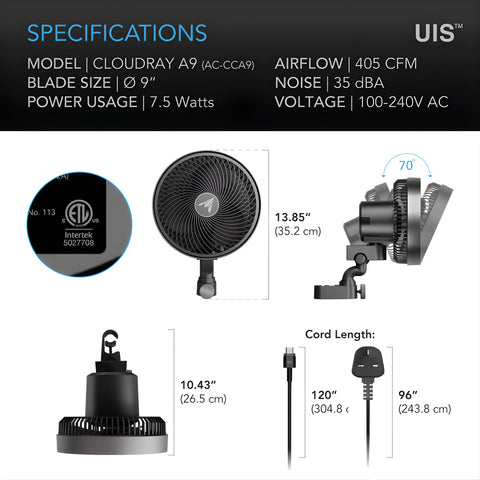

Product and Mounting Dimensions - Fan Unit
Impeller Size	9"
Total Dimensions	10.19 x 12.59 in. (25.9 x 32.0 cm)
Cord Length to Plug	96 in. (8 feet)
Product Performance and Technical Specs
Maximum Airflow	450 CFM
Total Noise	36 dBA
Static Pressure	25 Pa
Operating Voltage	100-240V AC
Power	8 W
Current	0.14 A
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-44
Rotation Range	90°
Tilt Angle	55°
Oscillation	Manual Adjustable Tilt
Fan Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
Product Manual
Product Manual	PDF

Cloudray A9, Gen 2 Grow Tent Clip Fan 9” With 10 Speeds, Ec-Motor, Manual Swivel
