AC-CCS4

Cloudray S4 Grow Tent Clip Fan

Ultra-compact circulator engineered to deliver precise high velocity airflow in grow setups with limited spacing.
Specialized high static pressure design achieves superior circulation in tight spaces, outperforming even larger clip fans.
Low-profile form factor houses a miniaturized EC motor with dual-ball bearings and IP54 rating for maximized lifespan.
Maintains 10 oscillation ranges to focus on targeted areas or achieve wide coverage while avoiding obstacles.
Uncompromised 10 speeds and 10 dynamic wind modes to simulate outdoor airflow for optimal plant growth.

Product Description

A highly innovative clip fan designed to deliver targeted circulation and optimize each stage of your plant’s grow cycle. Get unprecedented customization capabilities for complete airflow control using this grow tent clip-on fan’s 10 speed levels, 10 dynamic wind modes, and 10 oscillation settings. The specialized compact motor achieves a higher wind velocity than that of larger clip fans (at maximum speeds), ensuring full space coverage. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

Tailored, Custom Airflow

Access ten digital speeds plus ten dynamic wind modes for customizable airflow that varies between levels to simulate an outdoor environment, ensuring healthier growth with reduced stress on your plants. For even greater control, utilize the ten oscillation levels that deliver focused circulation to specific spots or offer the widest reach possible while avoiding obstacles. With this, you can set precise circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings to a powerful airflow for vegetative and flowering.

Compact Engineering

This clip fan utilizes a small form factor and a high static pressure design that produces superior circulation in tight spaces, delivering greater wind velocity when compared to larger fans. Its miniaturized EC motor with carbon steel gears and dual-ball bearings maximizes efficiency and control, ensuring strong, consistent airflow. A space-saving metal clamp with a vise-grip-style design ensures a dependable hold on tent poles.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CLOUDRAY S4
Product Model	AC-CCS4
UPC Code	819137025066

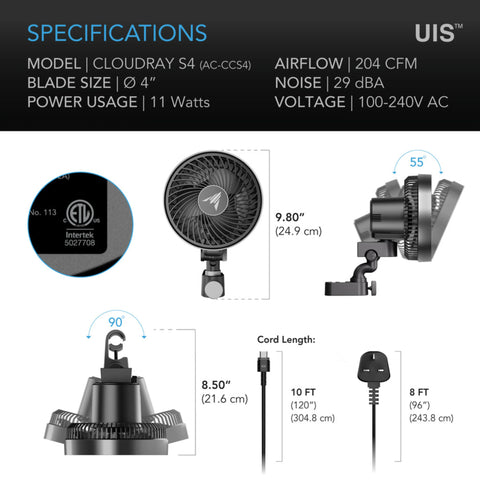

Product and Mounting Dimensions - Fan Unit
Impeller Size	4.0"
Total Dimensions	9.73 x 11.82 in. (24.7 x 30.0 cm)
Cord Length to Plug	96 in. (8 feet)
Product Performance and Technical Specs
Maximum Airflow	204 CFM
Total Noise	29 dBA
Static Pressure	23 Pa
Operating Voltage	100-240V AC
Power	11 W
Current	0.16 A
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-54
Rotation Range	90°
Tilt Angle	55°
Oscillation	Automatic Oscillation
Fan Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
ETL Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF

Ultra-Compact Design for Maximum Efficiency

The Cloudray S4 Grow Tent Clip Fan boasts a 4-inch ultra-compact design, making it ideal for limited grow tent spaces. Its small footprint allows easy placement without obstructing plants or equipment. Despite its size, this fan delivers powerful airflow that ensures consistent air movement throughout your grow environment. The clip design offers flexible mounting options to suit various setups, allowing you to position the fan at optimal heights and angles. This feature enhances ventilation and helps maintain an ideal microclimate for plant growth while saving valuable space.

Long-Life EC Motor with Dynamic Fan Speeds

Equipped with a long-life EC (Electronically Commutated) motor, the Cloudray S4 Grow Tent Clip Fan delivers energy-efficient and reliable performance. The motor's advanced technology reduces power consumption while increasing durability, perfect for continuous use in grow tents. With 10 dynamic fan speed levels, users can customize airflow intensity to meet specific requirements during different growth stages. This precise control helps avoid stress on plants caused by excessive wind or stagnation, promoting healthy development and robust yields.

10-Level Auto Oscillation for Specialized Air Circulation

This fan features a 10-level auto oscillation system designed to enhance air circulation evenly throughout your grow tent. By automatically sweeping back and forth within adjustable angles, it minimizes stagnant zones and prevents hot spots that could hinder plant growth. The high-velocity circulation generated ensures consistent temperature and humidity levels, crucial for maintaining a stable environment. This specialized oscillation ability reduces the risk of mold and pests while improving CO2 distribution, creating optimal conditions for thriving indoor gardens.

CLOUDRAY S4 Grow Tent Clip Fan 4” Ultra-Compact with Long-Life EC Motor, 10-Level Dynamic Fan Speeds, 10-Level Auto Oscillation, Specialized High-Velocity Circulation
