AC-CCS6

Cloudray S6, Gen 2 Grow Tent Clip Fan

Cloudray S6, Gen 2 Grow Tent Clip Fan is designed to deliver targeted circulation and optimize each stage of your plant’s grow cycle. Access ten digital speeds plus ten dynamic wind modes for customizable airflow that varies between levels to simulate an outdoor environment. For even greater control, utilize the ten oscillation levels that deliver focused circulation to specific spots or offer the widest reach possible. This circulation fan is IP54-rated to maintain peak performance during continuous use in high humidity and temperature. It also meets ETL standards (certificate #5027708) for electrical appliance safety, ensuring secure use in air circulation applications. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

TAILORED, CUSTOM AIRFLOW

Get unprecedented customization capabilities for complete airflow control using this grow tent clip-on fan’s 10 speed levels, 10 dynamic wind modes, and 10 oscillation settings. Uniquely tailor each stage of development for a wholly personalized growing experience. Our wide selection of dynamic modes lets you decide the maximum strength of your varying wind flow, ensuring healthier growth with reduced stress on your plants. The oscillation range offers total tent coverage, being able to avoid obstacles. With this, you can set precise circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings to a powerful airflow for vegetative and flowering.

REDESIGNED MOTOR

This clip fan features a robust EC motor specially designed in size and construction to lengthen oscillation lifespan. Its clamp is re-engineered with a compact metal build that saves space in your grow tent and uses a vise grip-like design for greater security on tent poles. Other reinforced features include a brushless motor design, resilient carbon steel gears, and dual-ball bearings for omnidirectional mounting. These components create the heaviest-duty clip fan that is long-lasting, energy-efficient, and can generate powerful circulation.

PLEASE NOTE THE GEN 2 CLOUDRAYS CANNOT BE DAISY CHAINED

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CLOUDRAY S6
Product Model	AC-CCS6
UPC Code	819137022423

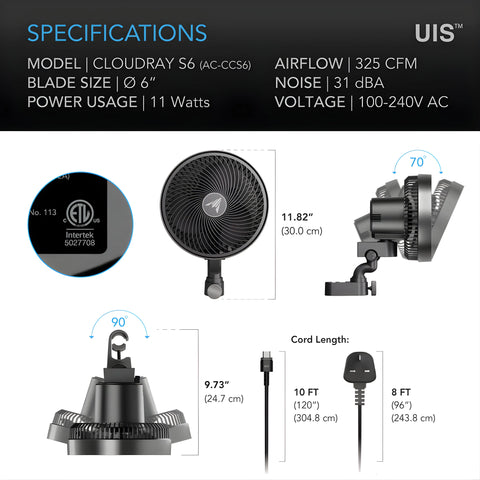

Product and Mounting Dimensions - Fan Unit
Impeller Size	6"
Total Dimensions	9.73 x 11.82 in. (24.7 x 30.0 cm)
Cord Length to Plug	96 in. (8 feet)
Product Performance and Technical Specs
Maximum Airflow	325 CFM
Total Noise	31 dBA
Static Pressure	25 Pa
Operating Voltage	100-240V AC
Power	11 W
Current	0.14 A
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-54
Rotation Range	90°
Tilt Angle	55°
Oscillation	Automatic Oscillation
Fan Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
ETL Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF PDF

Cloudray S6, Gen 2 Grow Tent Clip Fan 6” With Long-Life Ec Motor, 10-Level Natural Wind Modes & Fan Speeds, 10-Level Auto Oscillation
