AC-IBS24

Next-Gen Lighting: Advanced LED grow light combines an optimized full-spectrum design and precision diode positioning to maximize plant yields with 220W of high-output power and complete 2x4 coverage.
Maximum Efficiency: Algorithmically spaced LEDs deliver uniform PAR, deep canopy penetration, and edge-to-edge coverage, powered by proprietary diodes engineered to maximize efficiency, light output, and growing.
Thermally Advanced: Enhanced heat sink design improves thermal dissipation to maintain peak performance, reduce excess heat buildup, and extend the operational lifespan of the grow light and its components.
Custom Controls: Fine-tune brightness from 0 to 100% using the integrated dimmer, or connect with smart controllers to unlock automated grow cycles, scheduling, advanced programming, and app control.
Built for Growers: Constructed with a durable unibody aluminium board and IP-65 protection, this fixture is engineered to withstand elevated heat, humidity, and the demanding conditions of indoor grow environments.

Product Description

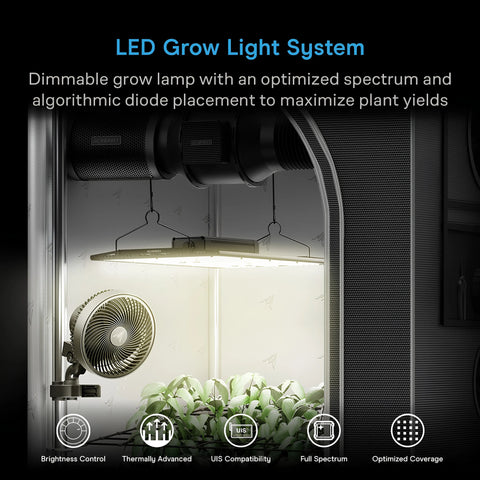

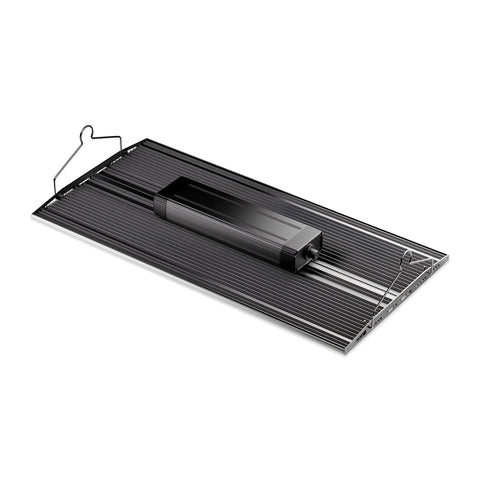

A full spectrum LED grow light designed with algorithmically positioned diodes to maximize plant yields. Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminium board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

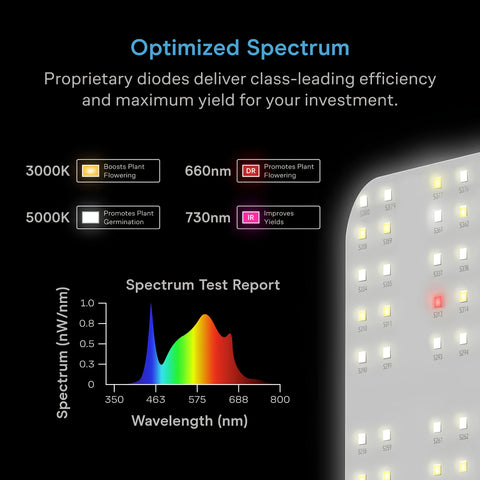

Optimized Spectrum

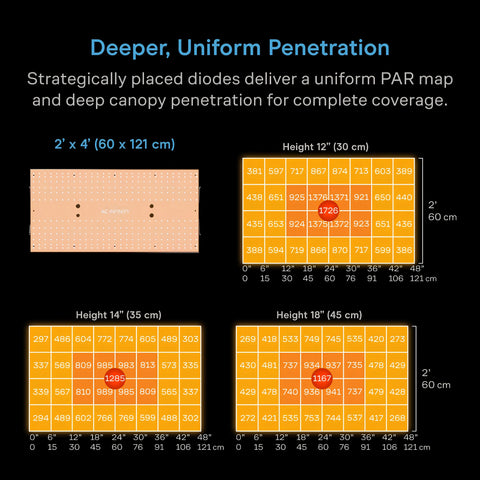

Each light contains 3000K and 6500K white diodes specifically formulated to help maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

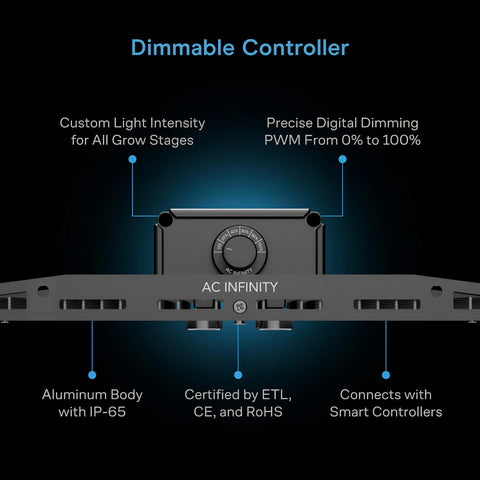

Future Ready Controls

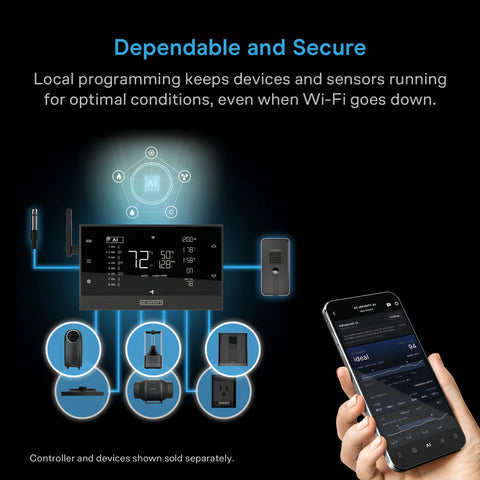

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	IONBOARD S24
Product Model	AC-IBS24
UPC Code	819137022522

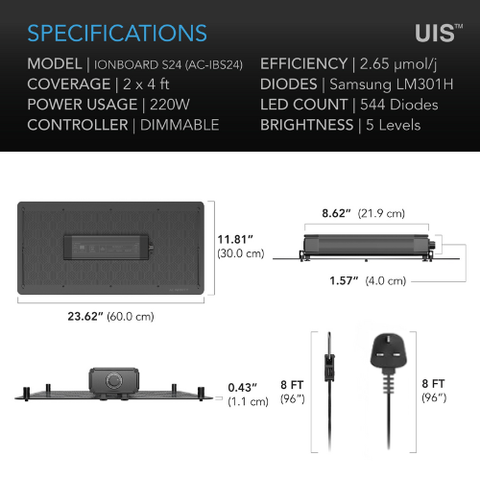

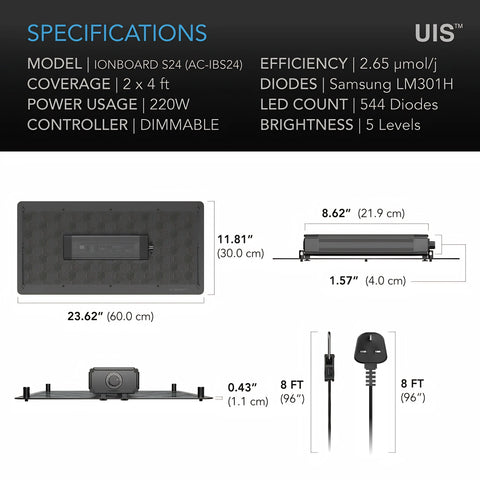

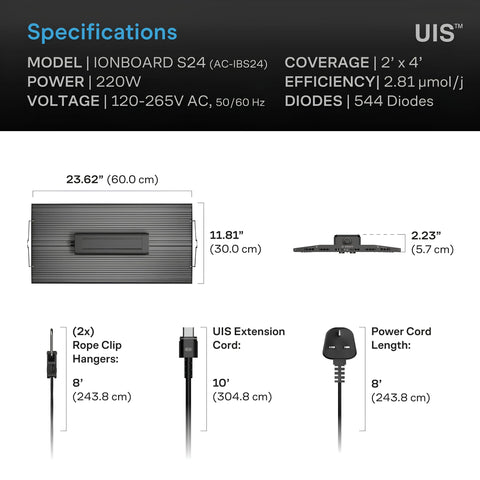

Product and Mounting Dimensions
Light Dimensions	11.81 x 23.62 in. (30.0 x 60.0 cm)
LED Board Thickness	0.43 in. (1.1 cm)
Driver Dimensions	8.62 x 1.57 in. (21.9 x 4.0 cm)
Product Performance and Technical Specs
Coverage	2 x 4 ft.
Diodes	Proprietary ACI Diodes
LED Chip Count	544
LED Driver	AC Infinity Proprietary Driver IB-200
Efficiency	2.65 µmol/j
PPFD	1726 PPFD
Spectrum	660nm, 730nm, 3000K, 6500K
Wattage	220 W
Voltage	100-277V AC
Frequency	50/60 Hz
Amps	1.84 A @ 120V \| 0.92 A @ 240V \| 0.80 A @ 277V
Controller	Digital Dimming Timer
Power Connector Type	UK plug
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Life Expectancy	50,000 Hours
ETL Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF

IONBOARD S24, Grow Light Board 220W, Full Spectrum LED 2x4 Coverage
