AC-IF8K

Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.
Bar-style fixture with algorithmically spaced diodes optimized for even coverage, deep canopy penetration, and hotspot reduction.
Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
6 x 6 ft. Veg. Coverage | 5 x 5 ft. Flower Coverage | Genuine Samsung LM301H EVO Chips | 2688 Diodes | 730W | 1408 PPFD

PRODUCT DESCRIPTION

An indoor plant grow light designed for grow tents and large grow spaces to improve your plant's growth rate and its yields. Utilizes Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots. Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation. This heat dissipation is supported by its steel and aluminum build, which enables magnetic mounting and is IP-65-rated to withstand humid environments. The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately). This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

INDUSTRY-LEADING LED CHIPS

Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (8) 395 nm UV diodes and (96) 660 nm OSRAM red diodes to complete its full spectrum light output.

SCHEDULE AND BRIGHTNESS CONTROLS

The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light. Customize this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement. Use this grow light with an advance UIS controller like CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	IONFRAME EVO8
Product Model	AC-IF8K
UPC Code	819137024076

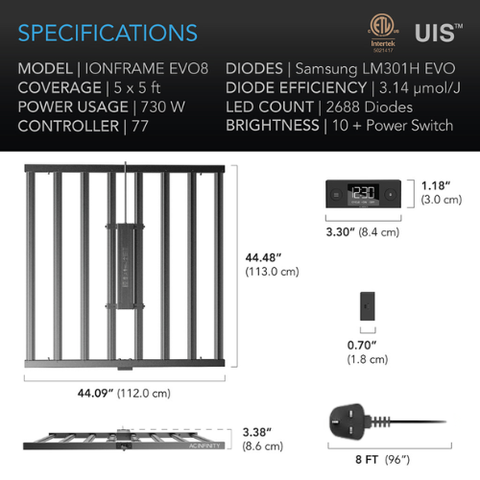

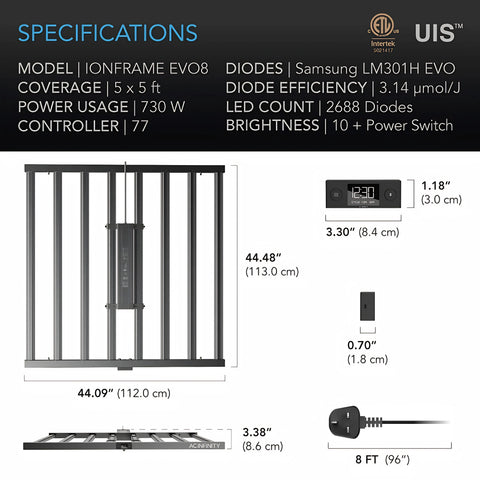

Product and Mounting Dimensions
Light Dimensions	44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)
Product Performance and Technical Specs
Coverage	5 x 5 ft.
Diodes	Samsung LM301H EVO
Spectrum	395nm, 660nm, 3000K, 5000K
Chip Count (Total)	2688
Chip Count (EVO 3000K)	1720
Chip Count (EVO 5000K)	864
Chip Count (Seoul 395 nm)	8
Chip Count (OSRAM 660 nm)	96
LED Driver	SOSEN-730W
Efficiency (Single Diode)	3.14 µmol/J
PPFD	1408 PPFD
Wattage	730 W
Voltage	100-277V AC
Frequency	50/60 Hz
Controller	Schedule Controller
Power Connector Type	UK plug
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-65
Life Expectancy	50,000 Hours
Product Manual
Product Manual	PDF

IONFRAME EVO8, Samsung LM301H EVO Commercial LED Grow Light, 730W, 5x5 FT
